The Latest High-Precision Optical Metrology

Wooptix is a leader in optical metrology through wavefront sensing,
a technique originating from adaptive optics in astronomy.
With a multidisciplinary team, Wooptix aims to transform the optical metrology industry by offering the highest lateral resolution with real-time processing speed.

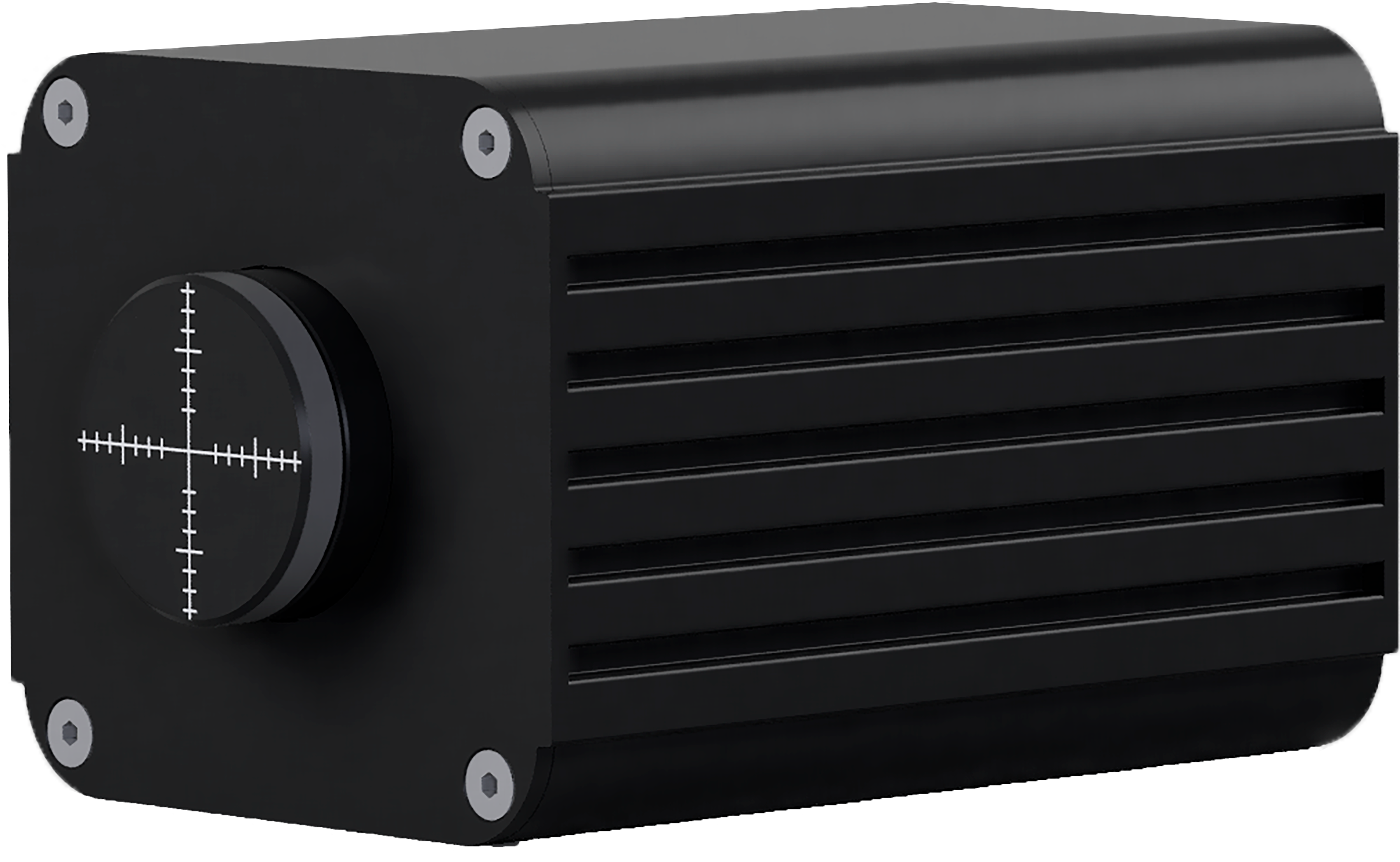

SEBI RT1000: The new wavefront sensor

SEBI RT1000 is a high-resolution wavefron sensor with real-time processing capabilities, offering high accuracy and sampling rates for the most demanding tasks.

What does this wavefront sensor bring to the current instrumentation market?

• Speed: Real-time processing at 30 FPS
• Connectivity and Integrability: Plug & play approach with USB connection and intuitive API/ SDK (C++/ Python)
• Precision: High wavefront phase spatial sampling. wavefront accuracy and repeatability

Examples of where Wooptix Technology is used include:

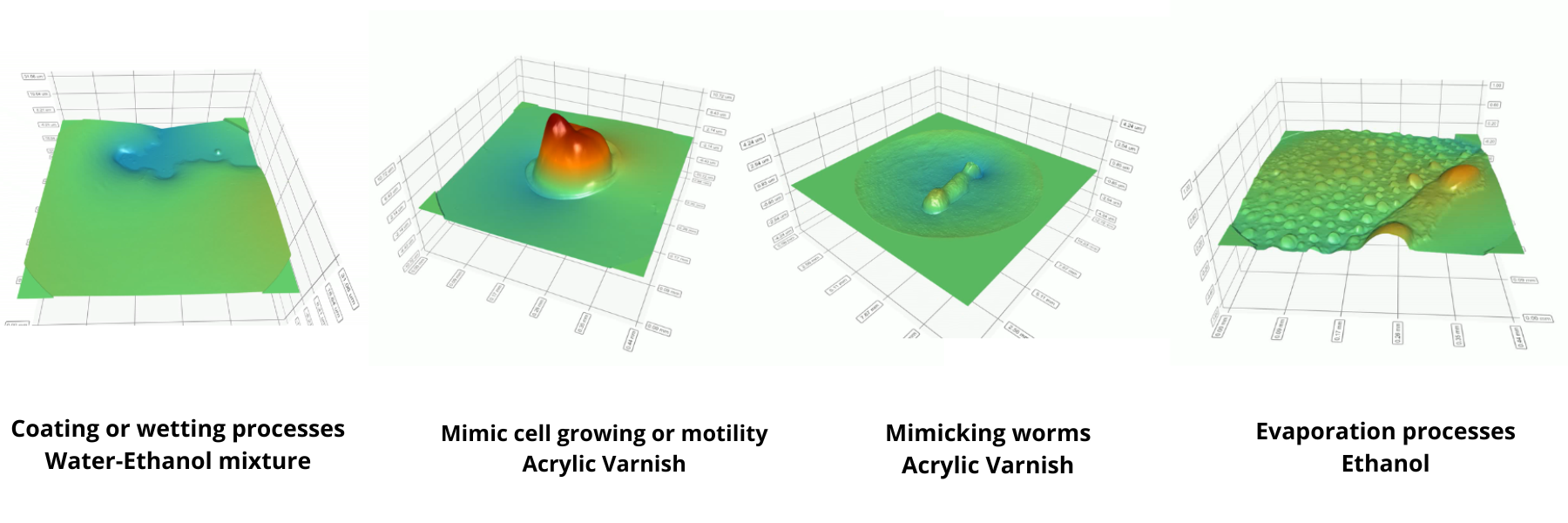

SEBI wavefront sensors are widely used in many biological and chemical microscopy applications:

High resolution inspection in real-time

Thanks to the implementation of Wavefront Phase Imaging (WFPI) technology, this versatile sensor can measure transparent and reflective samples that can benefit from phase data extraction to acquire information within the nanometer range.

With real-time data acquisition at 30 frames per second, Wooptix delivers versatile wavefront sensing tools capable of adapting into manufacturing and research environments.

Precise measurement of samples

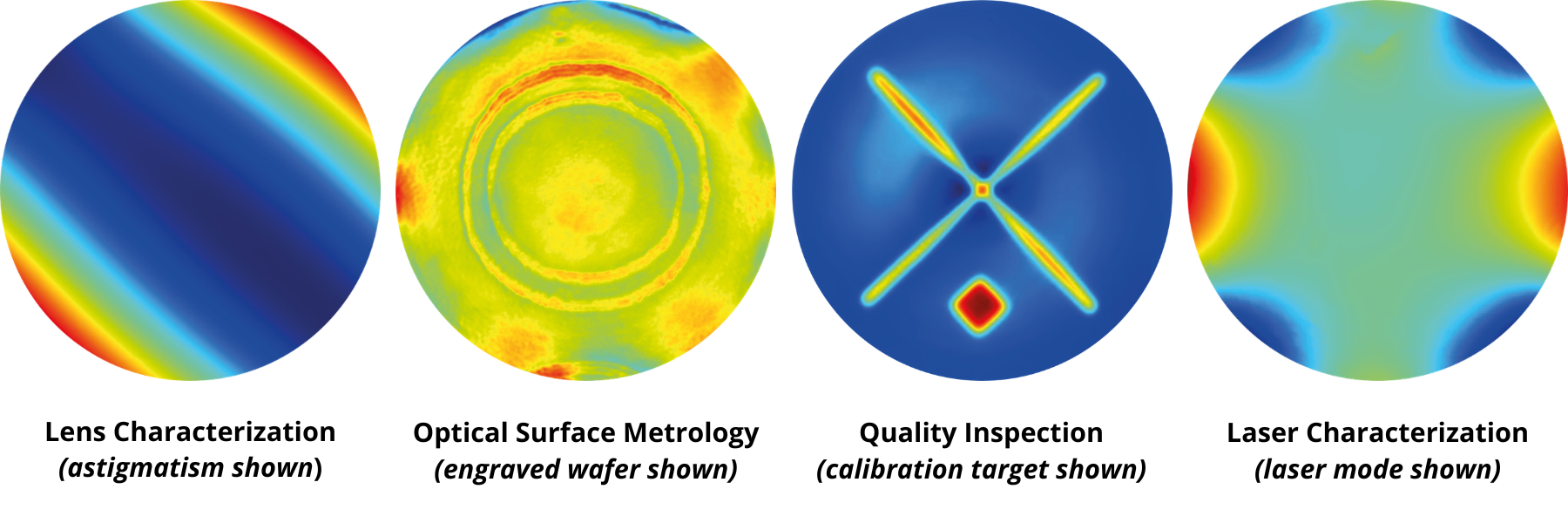

Wooptix’s wavefront sensor has different applications within industry and research, such as:

✓ Material and semiconductor inspection
✓ Characterization and alignment of optical equipment
✓ Observation of dynamic samples
✓ Quantitative Phase Microscopy

Significantly higher specifications than those of other commercial wavefront phase sensors.

Phase sampling	1000 x 1000 pixels
Wavefront accuracy	< lambda/30
Wavefront repeatability	<lambda/30
Lateral resolution	12,5 micron
Dynamic range	300 micron
Acquisition rate	30 FPS
Aperture dimension	15 x 15 mm2
Wavelenght range	380-650 nm

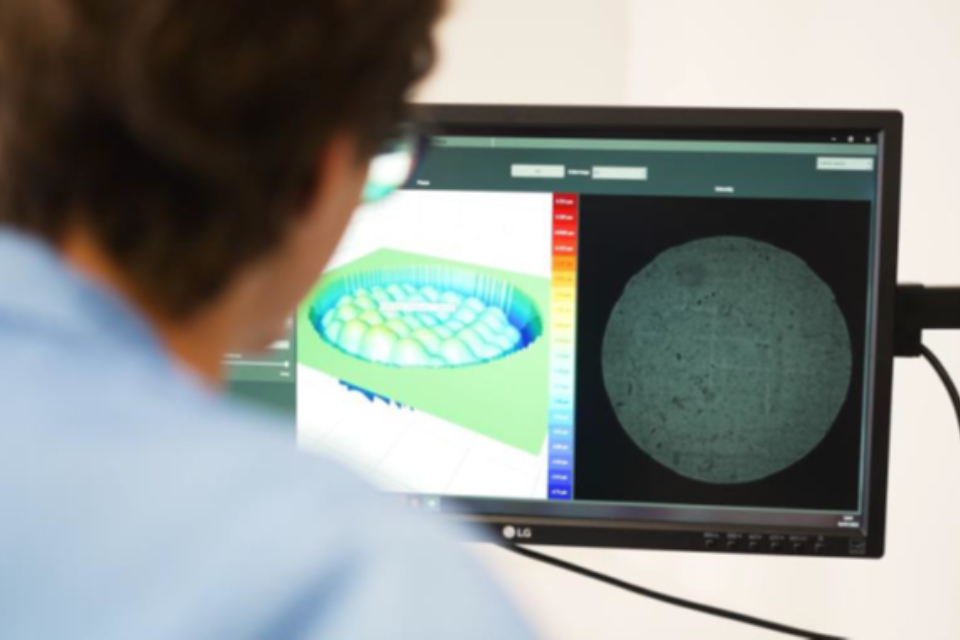

SEBI Analyzer Suite

SEBI RT1000 comes with its own software, SEBI Analyzer Suite. This enables users to capture the phase map and intensity in real time at full resolution. It provides the optical path difference (OPD) of the sample under test, offering a detailed analysis. The SEBI Analyzer Suite allows users to process the acquired information accordingly (e.g., filtering Zernike coefficients).
