Sealed CO₂ lasers from Universal Laser Systems

ULS is manufacturing CO2 laser sources since decades. ULS is in a unique position, manufacturing complete laser material processing systems as well as it’s own laser sources. The extensive experience ULS has gained, together with her customers, is continuously used to optimize the laser source designs.

CO₂ lasers from 10 till 75 Watt, all aircooled.
Wavelengths; standard 10,6 micron or 9,3 micron for specific materials.

When you exactly know what you are looking for we are happy to quote right away.

Your question for Ruben Request a quote

Some highlights of our ULS laser sources:

• Fixed beam position and pointing for easy exchange within each series
• Optional build-in red pointer beam
• Optional 90 degree beam exit
• 10,6 um and 9,3 um wavelengths
• Integrated air cooling with build-in fans
• Over temperature protection
• ROHS compliant
• RS 485 communication interface
• 48 VDC supply

Some applications for our ULS laser sources:

CO2 lasers are efficient sources for cutting or marking of many materials, including:

• Plastics
• Fabrics
• Leather
• Wood
• Glass
• Stone
• Anodized aluminum

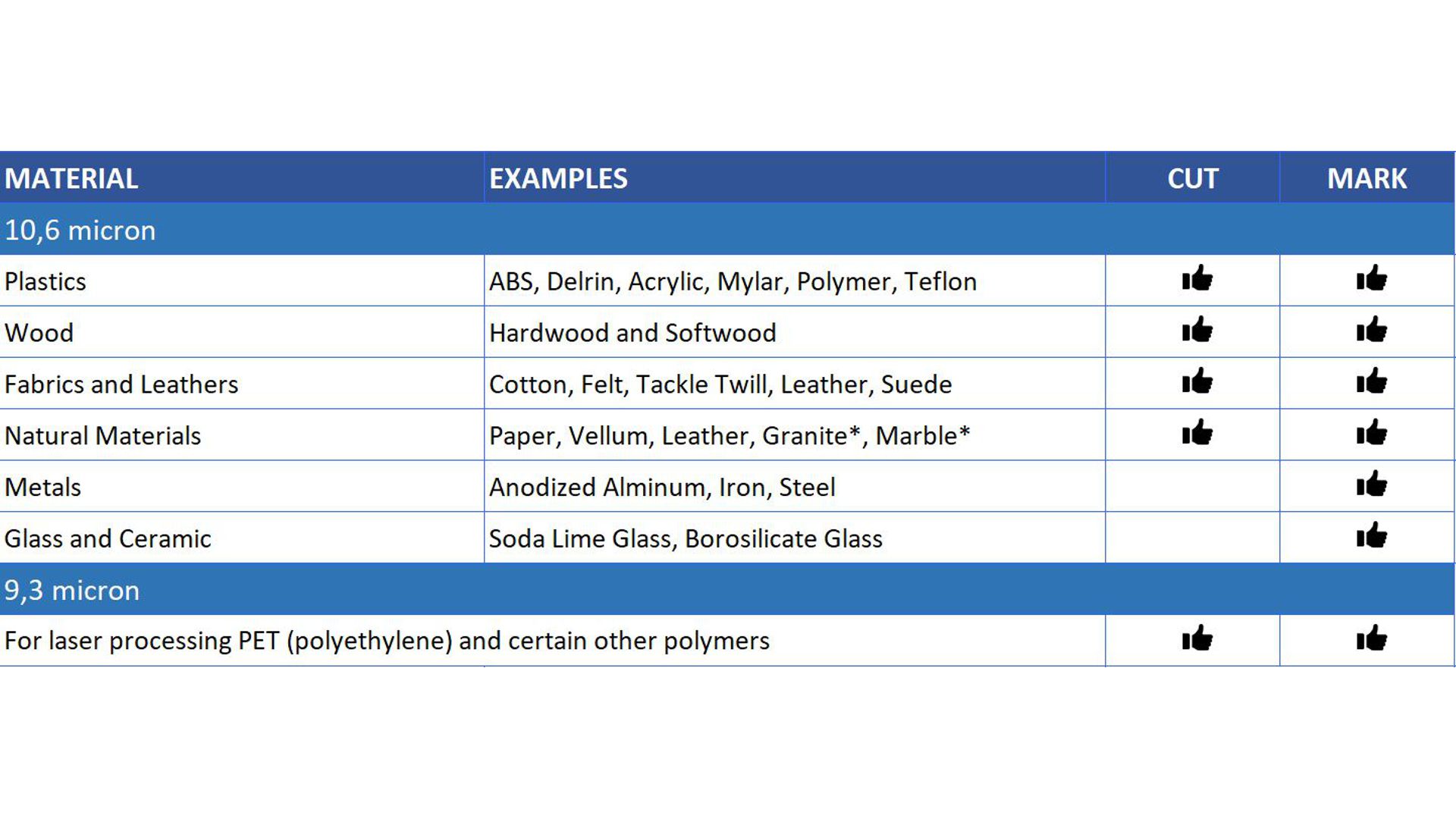

See here a table with popular materials, that are easily processed with CO2 lasers





ULS CO2 lasers are available in 2 wavelengths; 10,6 um and 9,3 um.
10,6 um lasers – the most common wavelength – are used frequently for:

• Cutting and marking of wood, fabrics, leather, laminates and plastics
• Marking on glass, stone and anodized aluminum

The 9,3 um lasers are designed specifically for processing:

• PET bottles
• Photopolymers
• Other soft plastics

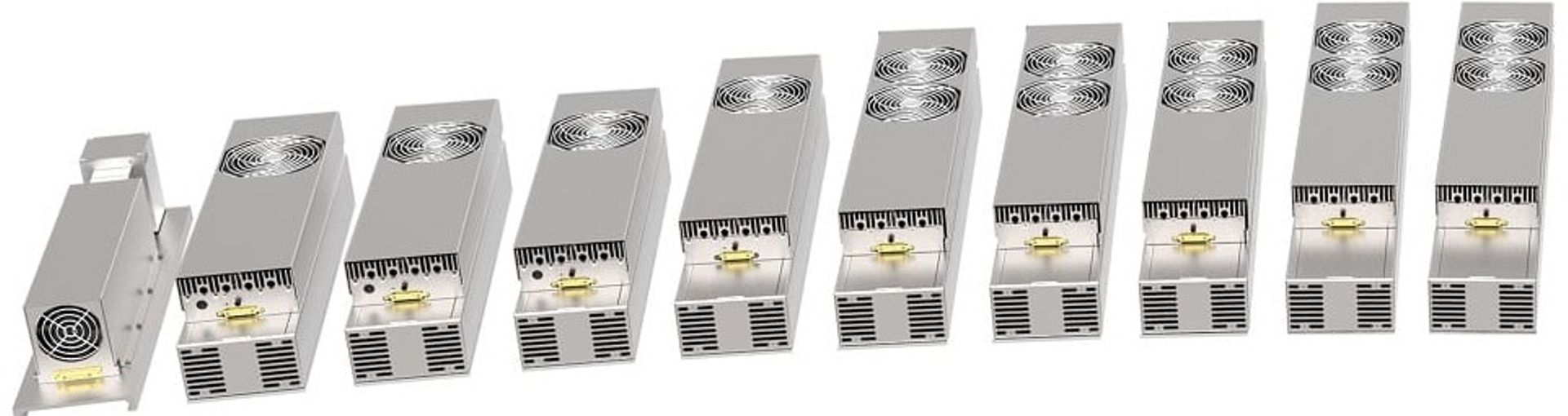

ULS manufactures CO2 lasers with output power levels from 10W to 75W:
These so-called ULR series lasers are based on a sealed, RF pumped slab design, allowing good focusing quality of the laser beam. The ULR series operate in either a CW mode or a modulation mode for adjusting the average output power. This modulation can be achieved by varying the pulswidth of the input control signal.

The RF-electrodes in the ULR series are positioned in such a way, that the beam has a good uniformity, without distortions. Combined with the earlier mentioned slab design, this guarantees an excellent beam quality in the far field as well as in the near field.
The folded resonator design allows for a compact design of the laser sources; also for higher power models.

All mentioned  laser sources are available with integrated fans for aircooling; no need for your own external cooling. The sources 10 – 50 W are available without fans; which has the advantage of smaller laser heads and less noisy operation. You will receive guidance for your own external cooling of the laser.
