Acceleration sensors
Vibration detection is one of the most applied (health) monitoring methods. Get direct insight in system behaviour and monitor deviations over time by measuring acceleration with Somni acceleration sensors. Our accelerometers are available in many shapes and sizes,ach one with its own specifications.

Dynamic response
The sensor produces a flat response over its specified region and increases in sensitivity towards its resonance. Both sensitivity and phase show minor deviations up to at least 1/3 of the resonant frequency. This makes the sensor particularly suited for use in applications in which timing is important.

Calibration
Each acceleration sensor is calibrated prior to shipment. Our standard calibration procedure generates a measurement report which includes information on sensitivity, flatness and resonance. A calibration formula is provided to transform the optical signal into acceleration data.

Design of our sensor
The acceleration sensor mechanisms made by Somni are based on a decade of experience in transducer design. Our vibration sensors comprise of a proof-mass which is part of a compliant mechanism. Due to this robust monobody design the sensor response is robust and reliable. All transducers are frictionless and produce accurate signals regardless of g-level.

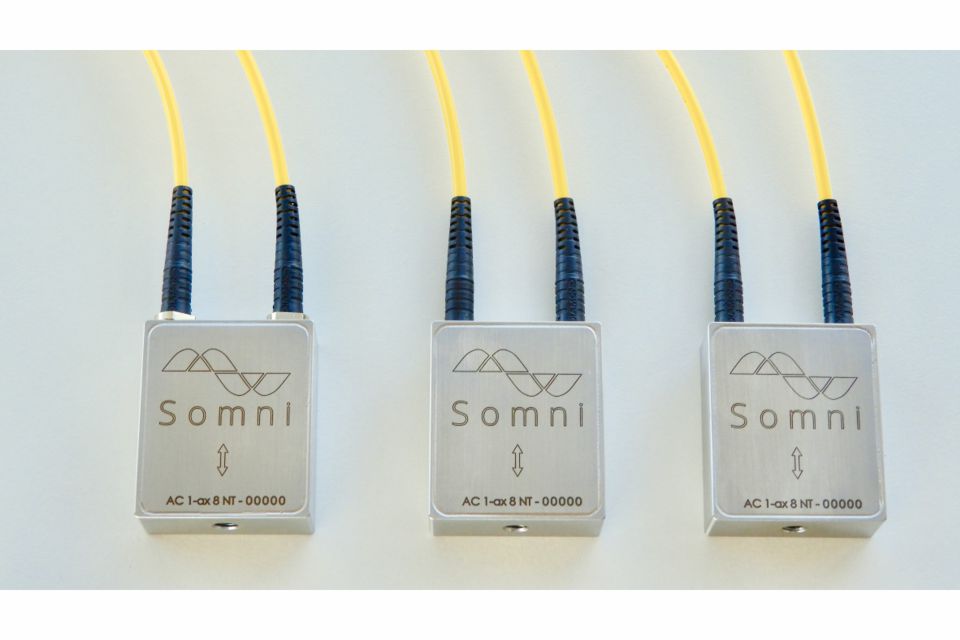

Acceleration sensor AC 1-ax 8 NT
Fiber Bragg Grating based single axis acceleration sensor, specifically designed to measure strong vibrations. This tiny accelerometer is ideally suited for monitoring of structures that vibrate fast and violent. All sensors are packaged in a rugged stainless steel housing offering maximum protection against harsh environments.

• >8pm/g sensitivity
• +/- 150g range
• shock proof up to 500g
• 5-1500 Hz bandwidth
• >2500 Hz resonance
• 1, 2 and 3 axis


  Request a Quotation

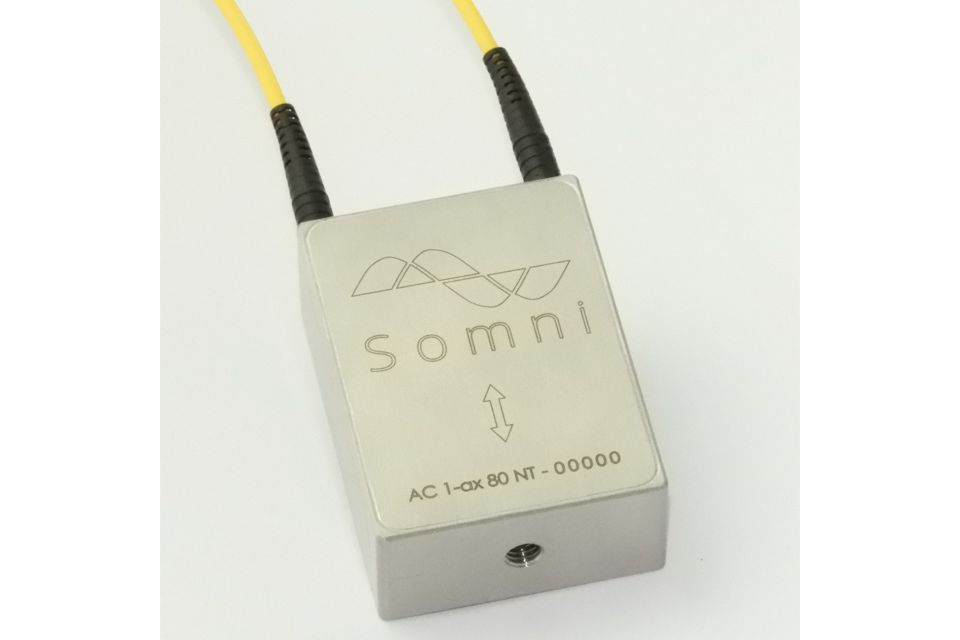

Acceleration sensor AC 1-ax 80 NT
Acceleration sensor suitable for medium range and high sensitivity applications.
This small form sensor is particularly suitable for monitoring of structures and machines that vibrate noticeable. All sensors are packaged in a rugged stainless steel housing offering maximum protection against harsh environments.

• >80pm/g sensitivity
• +/- 20g range
• shock proof up to 70g
• 5-700 Hz bandwidth
• >1250 Hz resonance
• 1, 2 and 3 axis


  Request a Quotation

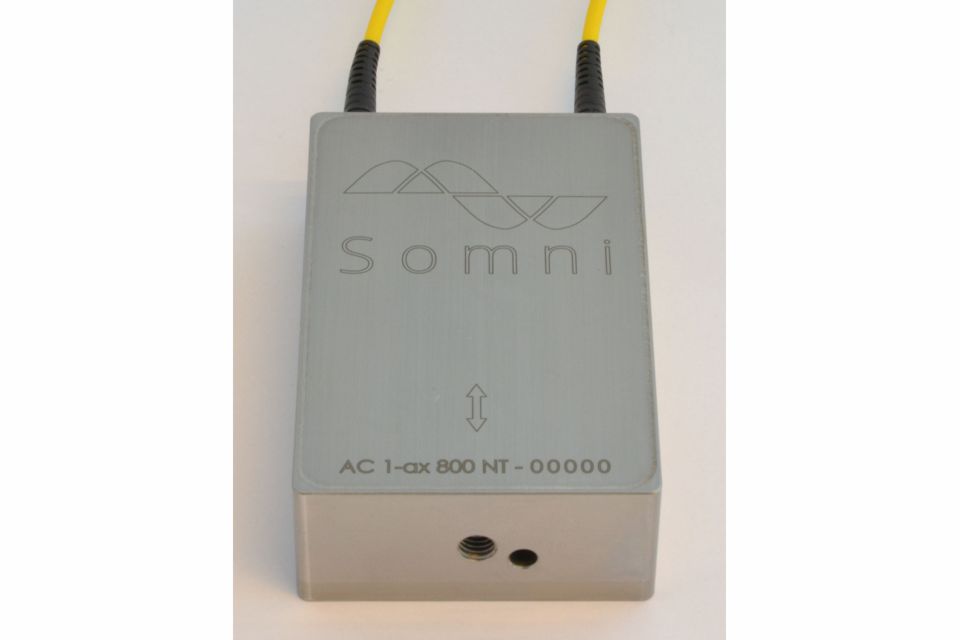

Acceleration sensor AC 1-ax 800 NT
Acceleration sensor suitable for low range and extreme sensitivity applications.
This sensor is particularly suitable for monitoring of structures with minimum vibrations or seismic surveying. All sensors are packaged in a rugged stainless steel housing offering maximum protection against harsh environments.

• >800pm/g sensitivity
• +/- 2g range
• shock proof up to 5g
• 1-150 Hz bandwidth
• >350 Hz resonance
• 1, 2 and 3 axis


  Request a Quotation

Custom sensor design and manufacturing
Somni solutions designs and manufactures tailor made sensors for the global market. If you require to measure something not covered by our off-the-shelf sensors, we can support you by producing a fiber optic sensing solution which fits your needs.
