Liquid Instruments
Moku:Delta, Moku:Pro and Moku:Lab

Replace no less than 15 instruments in your lab with just one single multi-functional device for a fraction of the cost.

Liquid Instruments introduces revolutionary platforms that combine compact, high performance instrument hardware with a very intuitive software interface.

See here our 4 instrument platforms:

	Moku:Delta	Moku: Pro	Moku:Lab	Moku:Go
	Accelerate product design and validation through mixed-signal analysis, 2 GHz instantaneous bandwidth, and an ultra-low-noise, high-resolution front end.	Meet demanding R&D requirements with four simultaneous instruments, each supporting bandwidths to 600 MHz.	Enable flexible testing with 200 MHz bandwidth, low-latency control, and affordable multi-instrument integration.	Tackle everyday lab tasks with this versatile, easy-to-use solution for quick experiments and testing with 30 MHz bandwidth.
Analog inputs
Input channels	8 × 14-bit + 20-bit, 5 GSa/s	4 × 10-bit + 18-bit, up to 5 GSa/s	2 × 12-bit, 500 MSa/s	2 × 12-bit, 125 MSa/s
Analog bandwidth	2 GHz	600 MHz	200 MHz	30 MHz
Impedance	AC or DC coupling with 50 Ω or 1 MΩ input	AC or DC coupling with 50 Ω or 1 MΩ input	AC or DC coupling with 50 Ω or 1 MΩ input	AC or DC coupling with 1 MΩ input
Input range	Up to ±20 V	Up to ±20 V	Up to ±5 V	Up to ±25 V
Analog outputs
Output channels	8	4	2	2
Analog bandwidth	2 GHz	500 MHz	300 MHz	20 MHz
Output range	±500 mV up to 2 GHz into 50 Ω ±5 V up to 100 MHz into 50 Ω	±5 V into 50 Ω	±1 V into 50 Ω	±5 V maximum output range

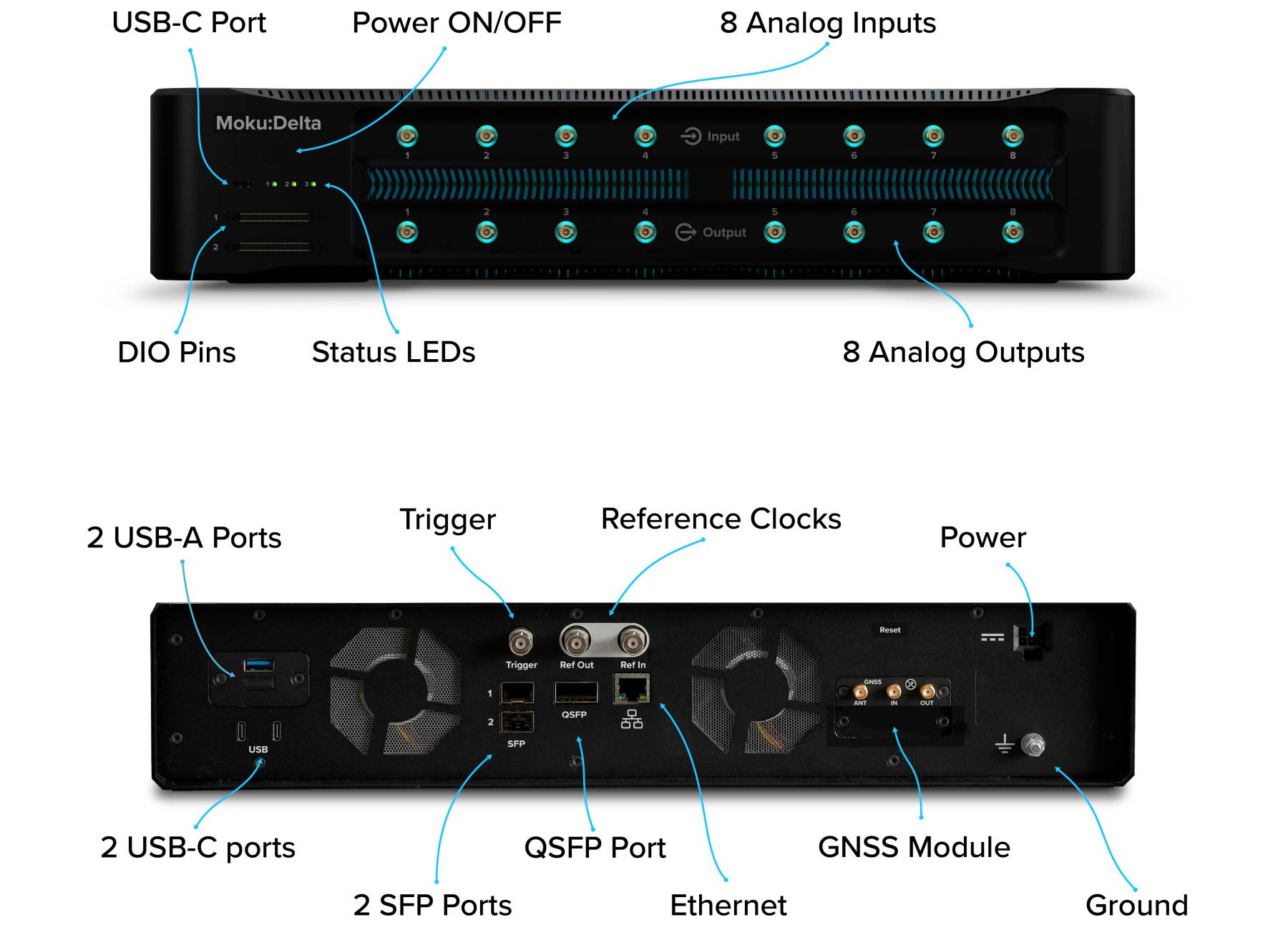

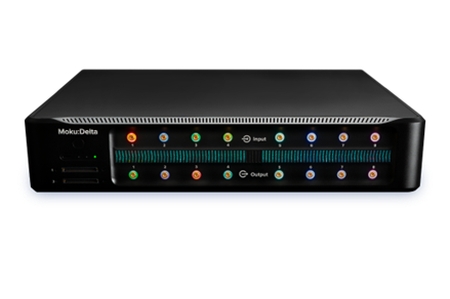

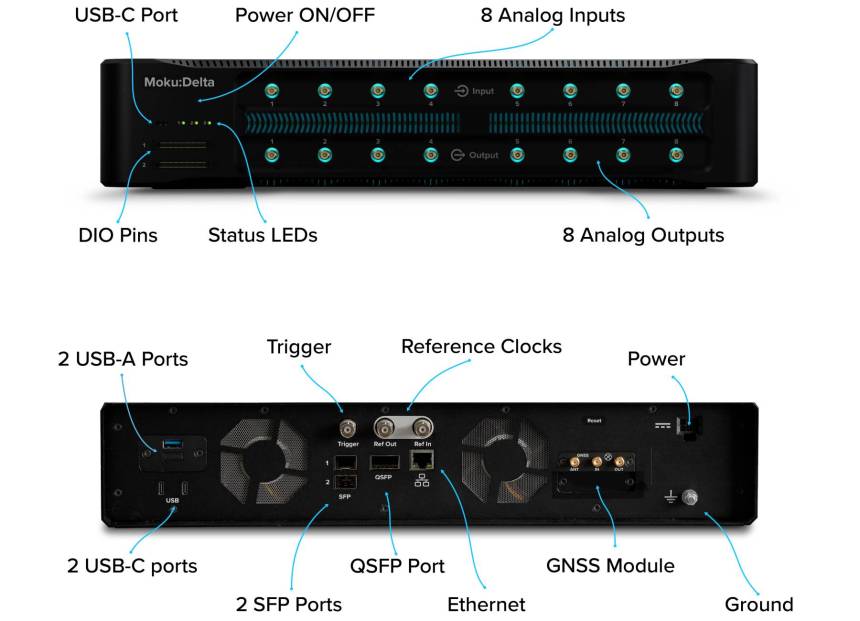

Discover Moku:Delta,
the next generation in reconfigurable test instrumentation:

• Eight analog inputs & outputs at 5 GSa/s and 2 GHz bandwidth
• 32-channel digital I/O
• Ultra‑low noise (<10 nV/√Hz) and 1 ppb clock stability OCXO
• Fifteen software-defined instruments, up to 8 running simultaneously (>2 billion configurations)
• Ideal for quantum physics, photonics, semiconductor testing, aerospace & defense



Download Moku:Delta datasheet Download Moku:Delta specifications

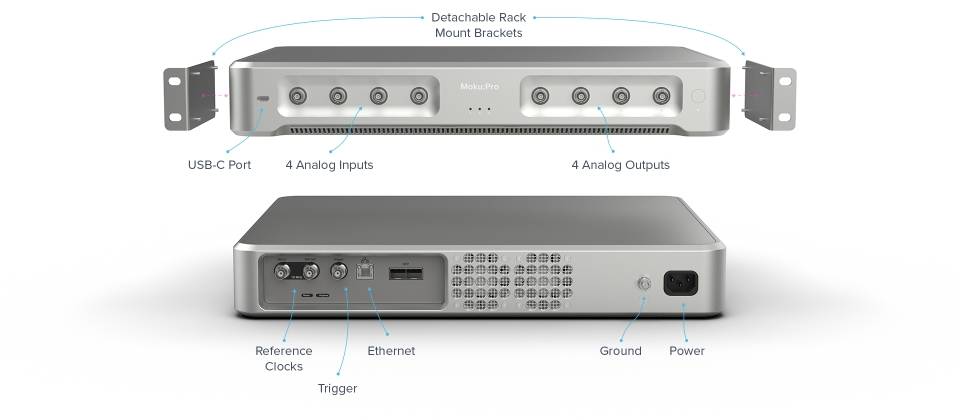

Discover Moku:Pro,
just as powerful as 15 instruments:

Meet demanding R&D requirements with four simultaneous instruments, each supporting bandwidths up to 600 MHz. The Moku:Pro hardware can be configured for a completely different function in seconds.

Download Moku:Pro datasheet Download Moku:Pro specifications

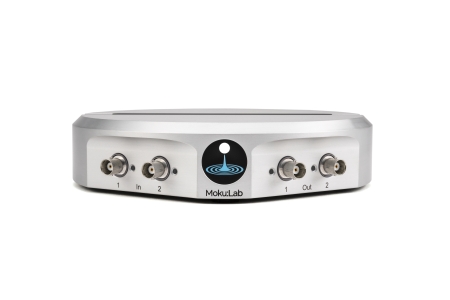

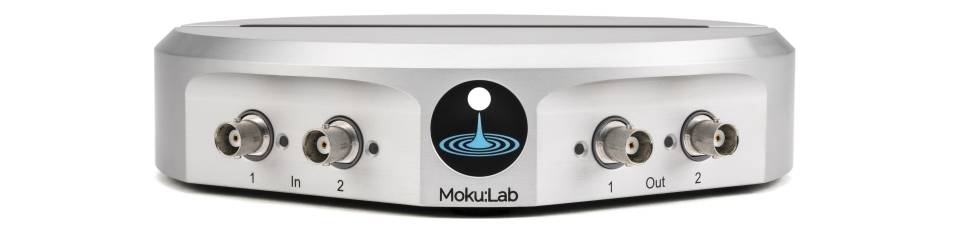

Discover Moku:Lab,
enable flexible testing with low latency control and affordable multi-instrument integration:

The Moku:Lab combines high-speed analogue inputs and outputs with fast reconfigurable digital signal processing. Moku:Lab can measure, record and generate signals up to 200 MHz.

Download Moku:Lab datasheet Download Moku:Lab specifications

Moku:Software,
greatly reduced test time, flexibility, fewer racks, unified hardware, upgradeable via software, and compatibility with Python/MATLAB/LabVIEW via API:

Download Moku app for Windows & Mac

Download API integration for Matlab, Python and Labview

Integrated Instruments by Liquid Instruments:

With Moku, you get a suite of powerful scientific instruments and advanced customization capabilities in a single device. We add new instruments and features regularly, so your device gets even more powerful over time.

See here below the list of current integrated instrument apps:

• Neural Network
• Lock-in amplifier
• Laser Lock Box
• Time & Frequency Analyser
• Phasemeter
• Frequency Response Analyser
• Arbitrary Waveform Analyzer
• Waveform Generator
• Oscilloscope
• Spectrum Analyzer
• PID Controller
• Digital Filter Box
• FIR Filter Builder
• Data Logger
• Logic Analyser / Pattern Generator
• Multi-Instrument Mode and Cloud Compile

Fourteen applications in which the Moku-instruments are very popular:

• Gravitational wave detection
• Dark matter detection
• Quantum optics
• Optical metrology
• Laser locking
• Atom interferometry
• Atomic force microscopy
• Photon counting
• MEMs testing
• Oscillator characterisation
• Quantum research
• Aerospace & defense
• Semiconductor testing
• AI & machine learning instrumentation

We are happy to advise on the configuration best suited for your application. If you already know what you are looking for, we can immediately provide you with a dedicated quotation.

Ask your question to Puck Receive a quotation
